Mobile Solution
Mobile Storage & Charging Solution
Our Mobile Storage & Charging Solution is developed for flexible off-grid and mobile energy supply demands. Dual-bus modular architecture adapts to variable site conditions without fixed civil construction, supporting rapid field deployment, emergency rescue and temporary fleet charging project delivery.
Solution Overview
One Mobile Unit, Multi-Scenario Energy Support

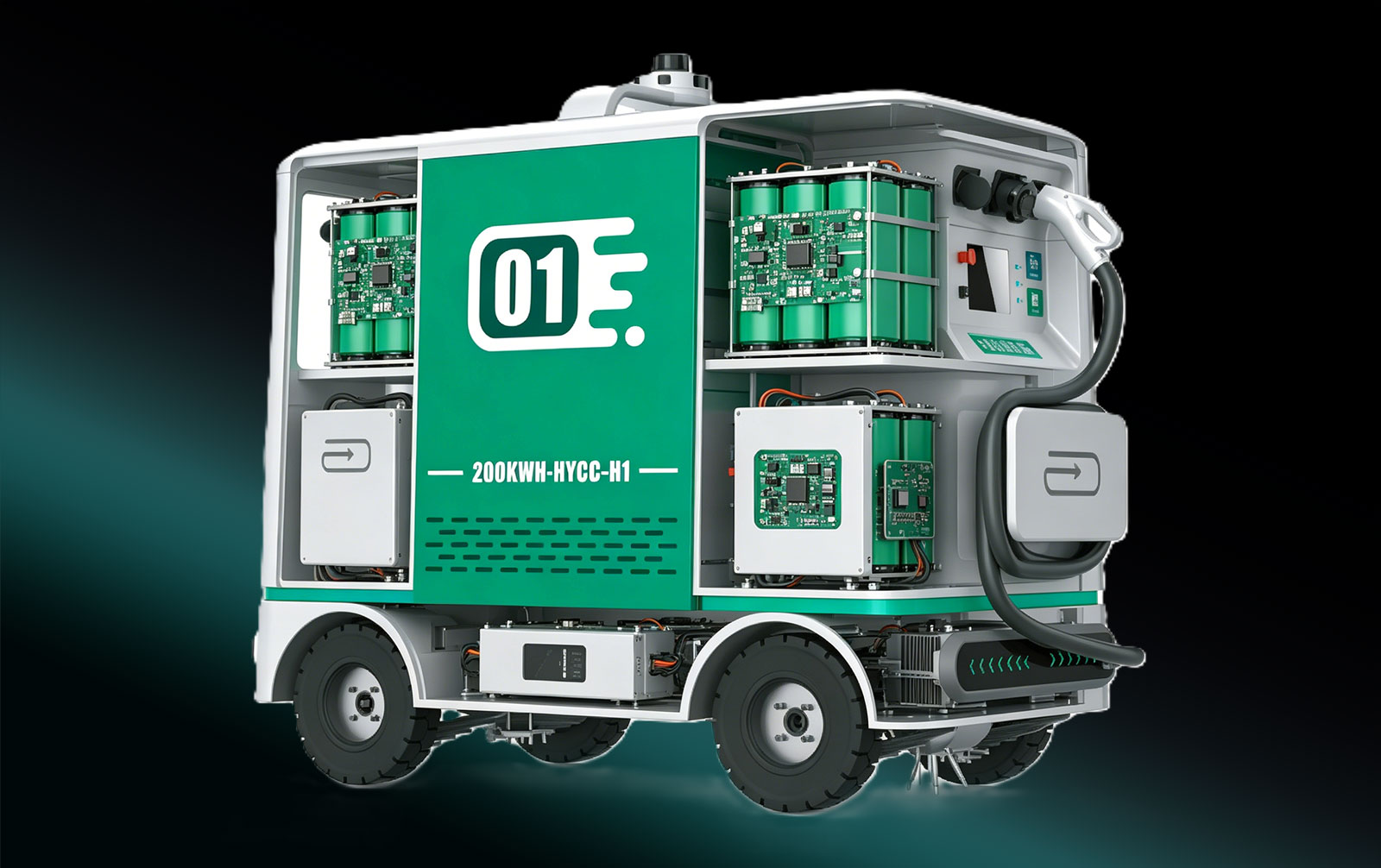

This mobile integrated storage and charging system provides AC bus and DC bus two technical architectures to match diverse application scenarios. The whole equipment integrates AC/DC conversion modules, DC/DC modules, BMS battery management system, PCS power conversion system, high-voltage electrical components, liquid cooling units and full safety protection systems. Equipped with remote control and autonomous driving functions, it realizes multi-directional energy circulation: grid charge battery, vehicle discharge to battery, charger charge battery, battery discharge to vehicle, grid direct supply vehicle. It can be widely deployed in various scenes and serves as reliable emergency power rescue equipment.
Dual Bus Flexible Architecture
- Optional AC bus & DC bus two topologies
- Flexible layout for different usage scenarios
- Modular combination for capacity expansion
- Quick disassembly and relocation design
Full Integrated Core System
- Integrated AC/DC & DC/DC conversion modules
- Built-in BMS, PCS and high-voltage assemblies
- Equipped liquid cooling temperature control unit
- Complete fire suppression & safety protection system
Intelligent Mobile Control
- Remote wireless monitoring & operation
- Unmanned autonomous driving capability
- Real-time status data feedback
- Intelligent fault self-inspection & alarm
Multi-Way Energy Flow
- Bidirectional grid-battery energy transfer
- Vehicle-battery mutual discharge & charge
- Charger-battery energy storage mode
- Battery direct power supply for vehicles
- Emergency off-grid power output function
System Architecture
Solution Topology
Positioned at the core of the charging infrastructure, this is where hardware meets software. It coordinates power delivery, manages multi-protocol translation, and enables seamless cloud connectivity across the energy ecosystem.
AC/DC Power module
Operation and Maintenance Platform
Operational platform
Metering electricity meter
POS
SECC
HMI
Card reader
Vehicle end BMS
Inside the Pile
Charging Pile Internal Structure
Inside, the charging pile features a modular, serviceable architecture centered on a robust control core, with every component engineered for reliability and rapid field replacement.
Core Product

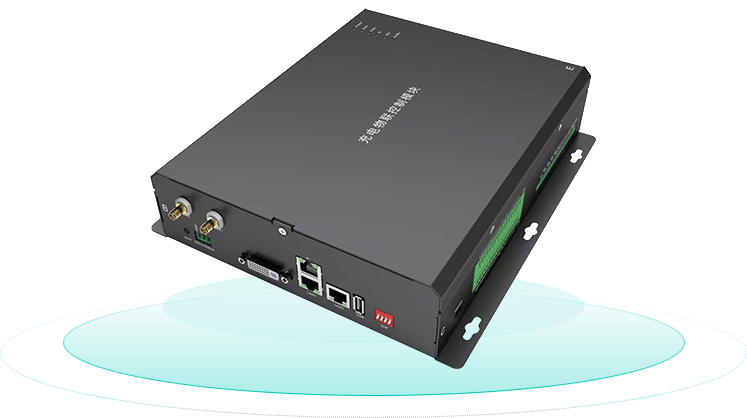

Charging IoT Control Module
The SCMD-D5 is a dual-gun charging control system built on STM32F413 + Linux + LVDS display architecture — integrating charging control, power allocation, information processing, insulation monitoring, electronic lock control, 4G/Ethernet/Wi-Fi/Bluetooth communication, voice function, and OCPP 1.6/2.0 into a single, highly integrated IoT control core.
High Performance
CPU ≥ 800MHz, Memory ≥ 512MB, Storage ≥ 8GB
Multi-Protocol Engine
Native support for EU CCS/Combo, US CCS1, and JP CHAdeMO with real-time auto-detection.
Full Intelligence
Active safety, black box, smart O&M, remote logs, edge computing
Protocols
CCS2, CCS1, CHAdeMO, OCPP 1.6/2.0

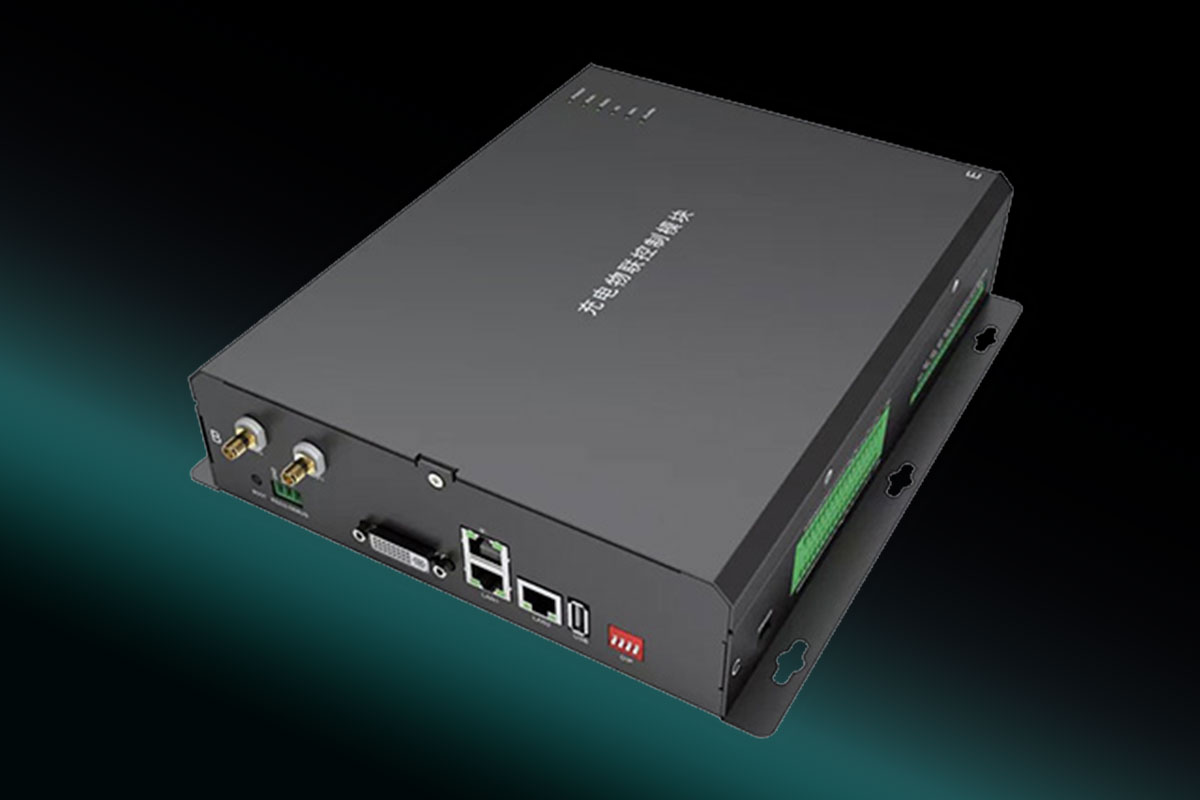

SCMD-D5 Controller
Dual-Gun IoT Control Core
With real-time operational log storage, remote diagnostics, and remote upgrade capabilities, the SCMD-D5 provides a technical foundation for stable station operation, low-cost maintenance, and rapid after-sales support.
01
Full Standard & Protocol Compatibility — CCS2, CCS1, CHAdeMO, covering all major global standards in one hardware platform.
02
Ultra-Fast Charging Ready — Supports high-power liquid-cooled ultra-fast charging at 250A / 400A / 600A / 800A, meeting megawatt-level fast charging demands.
03
Dual-Gun Independent Control — Each gun operates independently with dedicated insulation detection and full voltage/current/temperature sampling for a complete safety loop.
04
Industrial-Grade Protection — EMC Class A, lightning protection, ESD protection, conformal coating, wide-temperature stable operation.
05
Full-Function Networked O&M — 4G + Wi-Fi + Ethernet triple connectivity, supporting OTA, log tracing, USB upgrade, and cloud management.
06
Multi-Peripheral Integration — Unified control of touchscreen, voice, card reader, QR scanner, LED panel, fan, and contactor — all in one module.
07
One Hardware, Global Market — A single hardware design adapts to worldwide markets, significantly reducing R&D and inventory costs.
08
Black Box Safety Record — Large-capacity storage with real-time charging process logging. Every fault is traceable and auditable.
Core Product
EVSE Communication Controller
The SCMD-SECC2 is an ISO 15118 compliant EVSE (Electric Vehicle Supply Equipment) communication controller. It enables the charging controller to communicate with ISO 15118 / DIN 70121 / SAE J2847/2 compliant electric vehicles, supporting CP (Control Pilot), PP (Proximity Pilot), PWM signals, and Green PHY powerline communication.

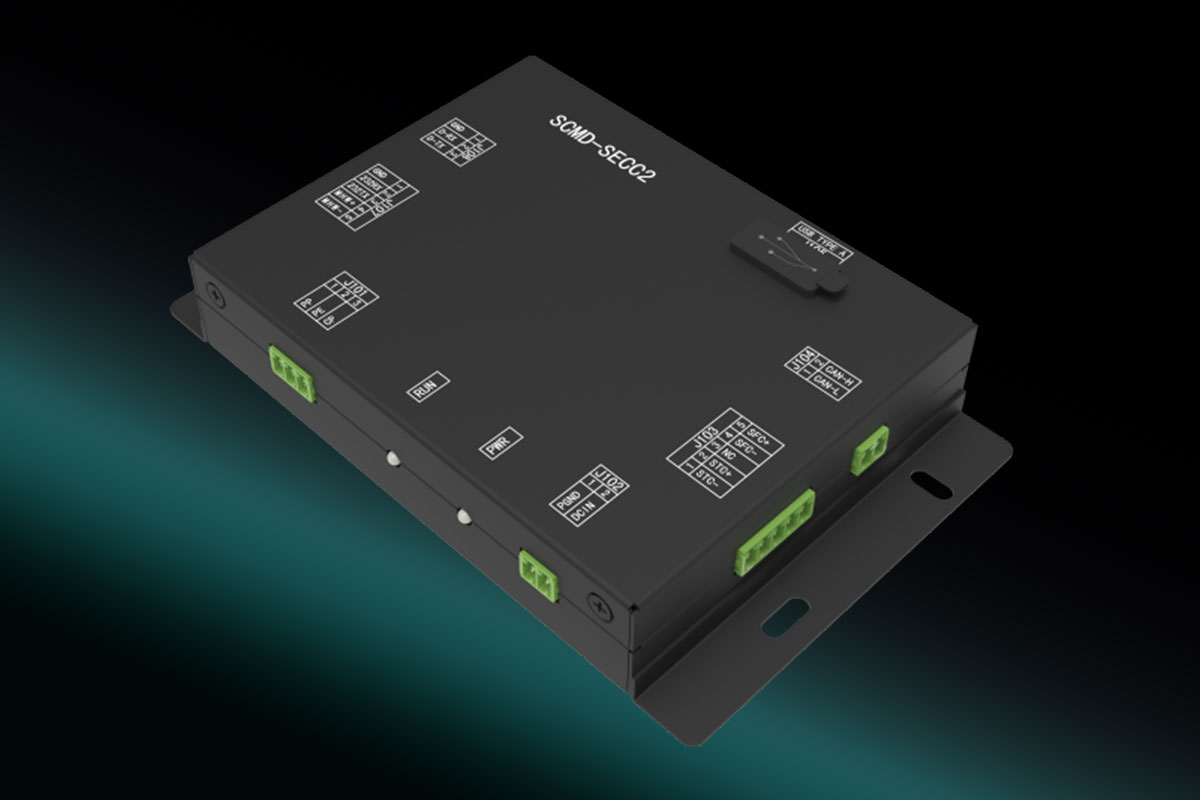

SCMD-SECC2
ISO 15118 Compliant SECC
Built around the Qualcomm HomePlug Green PHY QCA7005 PLC chip and a high-performance STM H7 microcontroller, the SECC2 delivers secure, reliable vehicle-to-grid communication with TLS protocol support.
Key Features
01
Qualcomm HomePlug Green PHY QCA7005 PLC chip for reliable powerline communication.
02
High-performance STM H7 chip with TLS security protocol support.
03
Full CCS compatibility: DIN70121, ISO15118-2/3.
04
Supports Plug & Charge (PnC) and External Identification Means (EIM) payment.
05
1kHz PWM communication with emergency stop input/output signals.
06
RS232 and CAN communication interfaces with OTA upgrade capability.
07
USB firmware upgrade and log download support.
Communication Standards
- ISO 15118-1:2019
- ISO 15118-2:2014
- ISO 15118-3:2015
- ISO 15118-4:2018
- ISO 15118-5:2018
- DIN 70121:2014
- DIN 70122:2018
Electrical Certifications
- EN 61000-6-2
- EN 61000-6-4
- EN 62368-1
- RoHS V2.0
PLC Chip
Qualcomm QCA7005 Green PHY
MCU
STM H7 series, TLS supported
Comm. Interfaces
RS232, CAN, CP/PP/PWM
Payment
PnC Plug & Charge + EIM
Product Strengths
8 Key Features — At a Glance
A visual walkthrough of the capabilities that make our charging solution stand out in the global market.
Customer Support
6 Major Services — What We Deliver
Beyond hardware — a complete partnership for successful deployment and long-term operation.
Complete Structural Solution
Full system architecture design and integration guidance tailored to your specific deployment scenario, from site survey to commissioning.
Electrical System Principles
Complete electrical schematic, wiring diagrams, and system principle documentation for the entire charging infrastructure.
BOM List Details
Detailed bill of materials with full specifications, qualified supplier recommendations, and approved alternatives for every component.
Debugging Documentation
Comprehensive debug manuals, fault-code reference tables, and step-by-step troubleshooting guides for field engineers.
After-Sales Training
Full-scale service training programs covering installation, commissioning, daily operation, and preventive maintenance procedures.
Resource & Tech Sharing
Ongoing access to shared technical resources, product update notifications, and industry knowledge base to keep your team ahead.
China Deployments
A showcase of our comprehensive EV charging solutions—from controllers to integrated systems—demonstrating exceptional adaptability and reliability in diverse Chinese market conditions.
Mobile Energy Storage and Charging Case Study
Shuangfengsi Service Area Case Study
